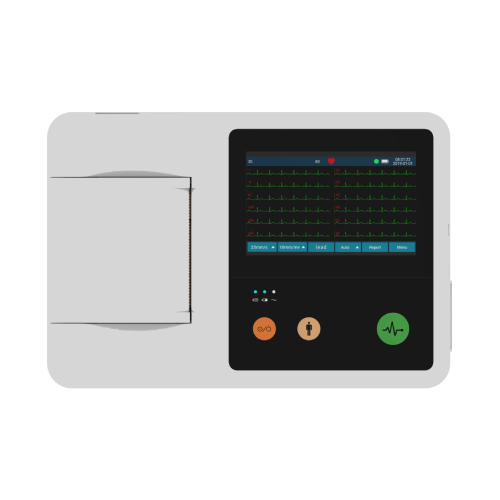

SmartBeat HS-03 - 3 Channel ECG Machine

Product Description:

The Smartbeat HS-03 - 3 Channel ECG Machine is an advanced 3-channel ECG machine designed to deliver accurate and comprehensive cardiac diagnostics. With its state-of-the-art technology and clear display, it provides a precise recording of electrocardiograms, enabling effective analysis of heart rhythms.

Send Inquiry Brochure

Main Highlights

• 5-inch 854*480 High-resolution HD LED Touchscreen design.
• Compact Size - 264mm*180mm*64.5mm
• 1.0kg light-weight body makes it easy to take anywhere
• Built-in high-resolution thermal printer direct printing, roll paper design as well as a Paperless facility.
• Internal storage up to 5000 ECGs and can be exported by USB flash disk.
• One-button operation: power button, patient information button, and sampling button, simplify the clinical operation process
• Support auto-diagnosis and auto-measurement, HS 03 has imported 280 professional case templates that can help caregivers quickly import diagnostic results.
• Achievement of Accurate Auto diagnosis and Interpretation is done by the World's Top class Glasgow ECG interpretive Algorithms with sensitivity and specificity for detecting  ST elevation MI rather than ESC/AAC criteria.
• Based on clinical insight, HS 03 has optimized workflow to support caregivers in the bedside scenario. Expect efficient clinical workflow, and reliable operation for both caregivers and patients.

Smooth Workflow

• Auto/Manual/Rhythm work modes
• Interface prompts tachycardia and bradycardia
• Lead-off detection and alarm

User-friendly Design

• Easy-to-use 1-2-3 touchscreen operation is fast and intuitive
• Built-in rechargeable Li-ion battery, continuous Operating >5h; AC/DC power supply

Report Management

• Report formats: PDF, PNG, JPG, XML, and ZQ ECG data export
• Workstation supports real-time sampling and analysis. It also can upload and download reports.

Check and Confirm the Quality -

Preview ECG waveform on the 5-inch touchscreen to check signal quality before printing which helps to save printing paper and confirm waveform quality in time Display lead signal quality with different colors can quickly judge waveform Quality and visual inspection that meet your needs now and in the future.

Standard Package

• E10 ECG Machine (with battery)
• Patient Cable
• Chest Electrodes
• Limb Electrodes
• Thermal Printing Paper
• Power Cord
• User Manual
• Paper Roller

Optional Accessories

• Series Electrodes
• Thermal Printing Paper
• Lithium Battery
• Workstation Software
• Trolley
• Paper Roller
• Suitcase

  • 5-inch 854*480 High-resolution HD LED Touchscreen
  • High End, Excellent Performance, extreme simplicity, Smooth Workflow, Innovative Ergonomic and User-friendly Design
  • 12 leads simultaneous acquisition
  • Dimension - 264mm*180mm*64.5mm: Weight - 1 Kg
  • DC - Built-in Lithium Battery
  • Battery Capacity - 3.7V/5200mAh
  • Continuous Operating - AC ≥ 5h
  • Recharge time - The battery is charged to 90% for no more than 3 hours, and charged to 100% for no more than 3.5 hours
  • Data Storage - Max. 5000 sets; support USB
  • Auto/Manual/Rhythm work modes
  • Interface prompts tachycardia bradycardia
  • Easy-to-use 1-2-3 touchscreen operation is fast and intuitive
  • Built-in rechargeable Li-ion battery, continuous Operating ≥5h; AC/DC power supply
  • Report Management
  • Report formats: PDF, PNG, JPG, XML, and ZQECG data export
  • The workstation supports real-time sampling and analysis. Reports can be imported and exported
  • Digital sampling rate - 32000Hz
  • A/D Converter - 24 bits
  • 1s baseline stability
  • Frequency response: 0.01-350Hz
  • Support double-pole pacemaker detection
  • Support hierarchical gain
  • Standard Grid Background
  • Built-in print layout: 3x4, 3x4+1
  • Sampling Modes
  • Real-time/Pre-sampling mode
  • Manual/Auto/Rhythm Modes
  • Support Multiple Languages - Simplified Chinese, English, Russian, French, Spanish, Portuguese
  • Format Report Storage - ZQECG、PDF、PNG、JPG、XML
  • Alarm - Electrode Disconnection, Three colors to indicate levels of waveform quality
  • It does not support external printer
  • Support connection to the workstation
  • Built-in Protection against Defibrillator
  • Support PACE Detection
  • Heart Rate Detection Range: 30-300
  • Rhythm analysis: 1 minute
  • Warranty - 1 Years
    • Dimension - 264mm*180mm*64.5mm
    • Weight - 1 Kg
    • Package - 335mm*182mm*265mm - 3.1kg
    • Electrical Power - AC: 100V-240V, 50Hz/60Hz, 30VA
    • DC - Built-in Lithium Battery
    • Battery Capacity - 3.7V/5200mAh
    • Continuous Operating - AC ≥ 5h
    • Recharge time - The battery is charged to 90% for no more than 3 hours, and charged to 100% for no more than 3.5 hours
    • Data Storage - Max. 5000 sets; support USB
    • Environmental Conditions - Transportation Temperature:-20℃～+55℃
    • Relative Humidity - 10%～95%
    • Atmospheric Pressure - 50 kpa ~106 kpa
    • Operation Temperature - +5℃～+40℃
    • Relative Humidity - 20%～85%(no condensation)
    • Atmospheric Pressure - 57kPa～106kPa
    • Storage Temperature - -20℃-+55℃
    • System Inputs & Outputs - USB
    • Frequency Response - 0.01 ~ 350Hz
    • Time Constant - ≥ 3.2s
    • Resolution - 854*480
    • CMRR - ≥ 120dB
    • Patient Leakage Current - ≤10µA
    • Calibration Voltage - 1mV ± 2%
    • Input Circuit - ≤ 50μA
    • Input Impedance - ≥ 60 MΩ(10 Hz)
    • Noise Level - ≤ 15μVp∽p
    • Sensitivity valve - 20 μV
    • Polarization Voltage - ±850mV
    • A/D shift - 24 bits Sampling rate: 32000 Hz (1ms)
    • Sensitivity - 20mm/mV、10mm/mV、5mm/mV Auto
    • Paper Speed - 12.5, 25, 50mm/s
    • Recording Mode - Thermal-array printer 8 dot/ mm (Vertical) 40 dot/ mm (Horizontal, 25mm/s)
    • Paper Type - Roll Paper
    • Paper Size - 80mm/20m
    • Filter Setting - AC: off/50/60Hz; EMG: off/25/35/45/75/100/150 Hz; DFT: off/0.01/0.05/0.3/0.6Hz
