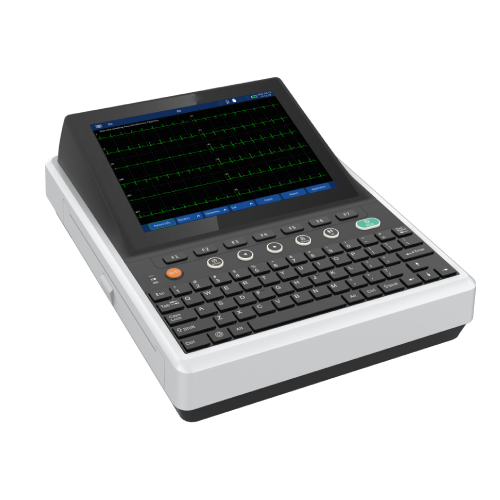

SmartBeat HS-12 - 12 Channel ECG Machine

Product Description:

The SmartBeat HS-12  is a cutting-edge 12-channel ECG machine, specifically designed for accurate and comprehensive cardiac diagnostics. With its advanced technology and high-resolution display, it offers precise and reliable recording of electrocardiograms, providing valuable insights into the patient's cardiac health.

Send Inquiry Brochure

The SmartBeat HS-12  ECG Machine is used in medical settings for several reasons. Here are some key points on why this ECG machine is utilized:

Comprehensive ECG Recording -

The SmartBeat HS-12  ECG Machine is designed to record and display a comprehensive set of electrical signals from the heart. It captures the electrical activity of the heart from multiple angles, allowing for a more detailed assessment of the heart's rhythm, conduction, and overall cardiac health.

Diagnostic Accuracy -

The 12-channel configuration of the SmartBeat HS-12  ECG Machine provides a more comprehensive view of the heart's electrical activity compared to machines with fewer channels. This allows healthcare providers to accurately diagnose and detect various cardiac conditions, including arrhythmias, conduction abnormalities, ischemic heart disease, and structural heart problems.

Enhanced Visualization -

The SmartBeat HS-12  ECG Machine typically features a high-resolution display that presents the 12-lead ECG tracings clearly and accurately. The increased number of leads and improved display quality facilitate better visualization of subtle waveform changes and abnormalities, aiding healthcare providers in making more accurate interpretations and diagnoses.

Standard Package

• U90 ECG Machine (with battery)
• Patient Cable
• Chest Electrodes
• Limb Electrodes
• Power Cord
• Leads Wire
• Thermal Recording Paper
• Grounding Wire
• User Manual
• Guarantee Card
• Quick Operation Guide


Optional Accessories -

• Disposable Electrodes Thermal
• Recording Paper
• SD Memory Card
• Lithium Battery
• Workstation Software
• Trolley
• Laser Printer
• Scanner
• Card Reader

Adherence to Standards

EN ISO 13485:2016
EN ISO 14971:2012
EN ISO 15223-1:2016
ISO10993-1:2009
ISO 10993-5:2009
ISO 10993-10:2010
EN 1041:2008
EN 60601-1:2006+A1:2013
IEC 60601-2-25: 2011
EN60601-1-2:2015
EN 62304:2006/A1 :2015
EN 62366-1:2015
EN 60601-1-6: 2010/ 2015


  1.
  • Dimension & Weight (Equipment) (L*W*H) - 285mm*360mm*94mm - 3.7 kg
  • 12-lead synchronous acquisition and display
  • 9.7 Inch HD LCD touch screen with tilted design
  • High End, Excellent Performance, extreme simplicity, Smooth Workflow, User-friendly Design
  • Innovative Ergonomics - Hidden handle, Rich peripheral interface, Printing mechanism, QWERTY keyword, lifting trolley (optional).
  • Report Function - Lead off reminder, Report Preview and management, and Pacemaker signal.
  • Report formats: PDF, PNG, JPG, XML, and ZQECG data export
  • Workstation supports real-time sampling and analysis. It also can upload and download reports.
  • Network and connectivity - Wired and wireless, send patient information and report directly to the hospital system
  • High-performance chip module makes ECG signal collection more accurate.
  • Sampling rate: 32000Hz.
  • A/D Converter: 24 bits
  • 1s baseline stability
  • 0.01-350Hz ultra-wide frequency response could acquire signals of patients from pediatric to elder.
  • With waveform freezing and waveform review functions, clinicians can choose any waveform for analysis and printing
  • With the report preview function, clinicians can ensure signal quality
  • Support reanalysis based on modified patient information
  • Support USB/ RJ45/ SD card ports for peripherals and export of data
  • Support output of multiple formats
  • Achievement of Accurate Auto diagnosis and Interpretation is done by the World's Top class Glasgow ECG interpretive
  • Algorithms with sensitivity and specificity for detecting ST elevation MI than ESC/AAC criteria
  • A high-performance chip module makes ECG signal collection more accurate
  • Built-in print layout:3×4, 3×4+1, 3×4+3, 6×2, 6×2+1, 12×1, 6×2+3
  • External laser printer to output the A4 report
  • Sampling Modes: Real-time/ Pre-sampling/Triggered sampling/Periodic sampling
  • Manual/Auto/Rhythm Modes
  • Support Multiple Languages: Simplified Chinese, Traditional Chinese, English, Ukrainian, Turkish, Russian, French, Portuguese, Spanish, German, Italian, Polish, Romanian, Bulgarian, Croatian, Thailand, Czech
  • Alarm: Electrode Disconnection; Recorder Unavailable; Tachycardia and Bradycardia; Low Power
  • Peripheral: Keyboard, mouse, USB disk, SD card, scanner, printer, card reader, etc.
  • Support cable network and wireless network
  • Support direct connection to third-party systems, such as HIS and EMR system
  • Built-in Protection against Defibrillator
  • ECG Algorithm: Automatic Measurement & Analysis
  • Support PACE Detection
  • Freezing: Max 60s Waveform Freezing and Review Function
  • Heart Rate Detection Range: 30-350
  • Frequency response range: 0.01-350Hz
  • Single-chamber Pacing / Dual-chamber pacing
  • One-button operation speeding up sampling efficiency
  • Support bipolar pacemaker detection
  • Original Filter TM adaptive filtering technology has greatly
  • Standard configured the Multi-axis TP® innovative Therma
  • Warranty - 1 Year
    • Dimension & Weight (Equipment) (L*W*H) - 285mm*360mm*94mm - 3.7 kg
    • Dimension & Weight (Package) (L*W*H) - 446mm*238mm*483mm - 6.2kg
    • Electrical Power: AC: 100V-240V, 50Hz/60Hz, 75VA DC: Built-in Lithium Battery
    • Battery Capacity: 14.8V / 4400mAh
    • Continuous Operating: DC ≥ 7h
    • Frequency Response: 0.01 ~ 350Hz
    • Time Constant: ≥ 3.2s
    • CMRR: ≥ 115dB
    • Patient Leakage Current: ≤10μA
    • Calibration Voltage : 1mV ± 2%
    • Input Circuit: ≤ 50μA
    • Input Impedance: ≥ 50 MΩ(10 Hz)
    • Noise Level: ≤ 15μVp∽p
    • Sensitivity valve: 20 μV
    • Polarization Voltage: ±950mV
    • A/D shift: 24 bits
    • Sampling rate: 32000Hz
    • Sensitivity: 2.5, 5, 10, 20, 40, Auto
    • Paper Speed: 5, 6.25,10,12.5, 25, 50mm/s
    • Recording Mode: Thermal-array printer 8 dot/ mm (Vertical) 40 dot/ mm (Horizontal, 25mm/s)
    • Paper Type: Z-Fold Paper
    • Paper Size: 210/216mm*140mm-20m
    • Filter Setting: AC: off/50/60Hz; EMG: off/25/35/45/75/100/150/250/350Hz; DFT: off/0.01/0.05/0.3/0.6Hz
    • Recharge time: the battery is charged to 90% in no more than 3 hours, and charged to 100% in no more than 3.5 hours
    • Data Storage: Local: When sampling time is 10s, and layout is 6×2, you can store no less than 1500 reports; When sampling time is 2.5s, and layout is 6×2, you can store no less than 2000 reports; Support SD card and U Disk
    • Ambient Temperature: -20℃～+55℃
    • Ambient Humidity: 10%～95%
    • Atmospheric Pressure: 500hPa～1060hPa
    • Ambient Temperature: +5℃～+ 40℃
    • Ambient Humidity: 20%~85%( no condensation)
    • Atmospheric Pressure: 570hPa～1060hPa
    • System Inputs & Outputs 2*USB2.0/ LAN Connector/ SD Card Slot
