Ophthalmology products

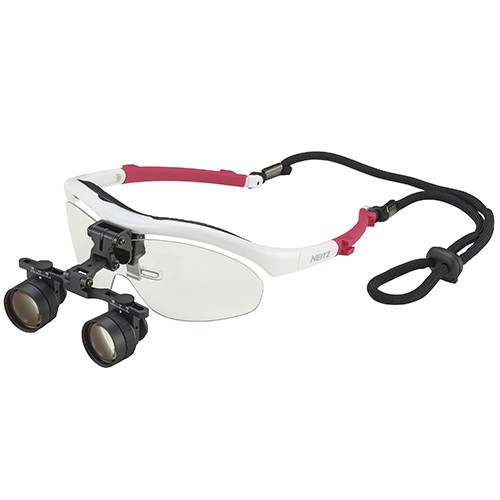

Galilean Loupe

Product Description:

Galilean Loupe is Suitable for surgery performed under low and mid-level magnification.  The visual field is bright and can easily obtain 3D images.

•    Unique Feature of Neitz Loupes

             In all Neitz loupes, you can adjust focus by turning lens-barrel to obtain clear image (for each applicable working distance).

•    Common Features of Neitz Loupes

             Spring Nose Support Nose pad working with the spring cushions the frame on the nose and holds the loupe frame firmly in place.

             Hinge and Stopper Hinge stopper assists to recover the original position of loupe, when flipping up and down


•    NEO frame- Lightweight, Comfortable- Ideal for extended Surgical Operations

             Developed as specialized frames for binocular loupes, the New NEITZ Neo Frame utilizes materials that achieve flexibility and strength for  exceptional fit and durability.

             The NEITZ Neo Frame fits at three points to distribute weight across the forehead, nose, and strap. Thus, even when using for long periods, fatigue is minimized.

  • Best for surgery and treatment require magnification of 2x to 3x
  • The bright field of view provides easy steropsis
  • Easy and comfortable to use
  • Adjustable observation distance by rotating the lens barrel
  • BLD-3 is best for surgery and treatment at close distance, for example use in dental practice
    • BLS-1 : Magnification: 1.5x to 2.0x, Working Distance (mm):550 to 350, Field of View Diameter (mm):Ф145 to 120
    • BLS-2 : Magnification: 2.0x to 2.5x, Working Distance (mm):550 to 350, Field of View Diameter (mm):Ф113 to 58
    • BLS-3 : Magnification: 2.5x to 3.0x, Working Distance (mm):550 to 350, Field of View Diameter (mm):Ф78 to 38
    • BLD-3 : Magnification:2.5x to 3.0x, Working Distance (mm):350 to 250, Field of View Diameter (mm):Ф80 to 50
