Spot Illuminator

Product Description:

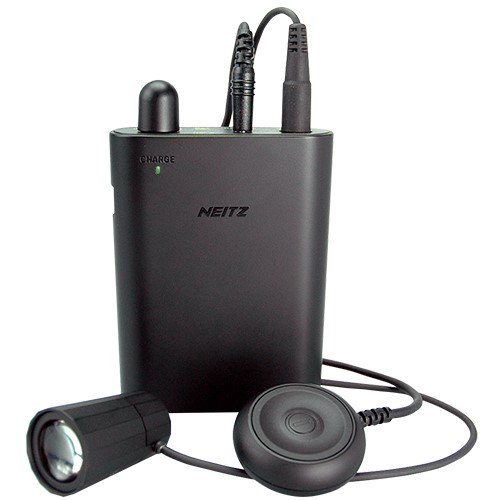

Spot illuminator is used as light source during surgical procedure and it uses LED as source light with NI-MH Battery.



Send Inquiry
  • World's highest illuminance; 32,000 lx for diameter of illumination field 100 mm, 38,000 lx for 80 mm
  • Small and lightweight, significantly reduced stress on the head and nose.
  • Increased battery capacity, 3 hours of high-speed charging
  • Continuous illumination for approx. 3.5 hours at the maxmum light intensity.
  • Won the 2014 Good Design Award.
  • Achieve extended illumination time while providing Outstanding Brightness and Illumination Range
  • To maximize brightness, a single-focus system is used.
  • In addition to being able to select from two types of illumination-field diameters (80 mm and 100 mm) , the loupe also achieves the highest level of brightness in its class with a maximum luminance of 100,000 Lux at 25 mm (80 mm type).
  • With a rechargeable battery pack and DC plug, illumination can be achieved for extended periods of time.
  • When using the battery pack, high-speed charging capabilities achieve a full charge in 3h and allow up to 3.5 h of continuous lighting at maximum intensity.
    • Dementions (mm) - Battery Pack - 88.5×68×22
    • Dementions (mm) - Illuminators - 23×34.6
    • Weight (g) - Battery Pack - 190
    • Weight (g) - Illuminators - 19
    • Light Intensity (at 400 mm distance) - Maximum Light Intensity - 100mm: Approx. 32,000 Lx , 80mm: Approx. 38,000 Lx
    • Light Intensity (at 400 mm distance) - Middle Light Intensity - 100mm: Approx. 19,000 Lx, 80mm: Approx. 22,000 Lx
    • Continuous Illumination Time - Maximum Light Intensity - Approx. 3.5 hours
    • Continuous Illumination Time - Middle Light Intensity - Approx. 7.5 hours
    • Light Source - 3W white LED
    • Illumination Field Diameter (mm) at 400mm distance - Selectable from below Dia. 100 Dia. 80
    • Illumination Colour temperature - Cool White 6500K
